Network architecture: Building secure and modern networks

Network architecture is the foundational framework that defines how devices, services, and systems connect and communicate. Effective design ensures reliable data flow, strong security, and the ability to adapt to changing business needs.

This article introduces the core principles, layers, and types of network architecture and examines its impact on business operations. It also highlights modern trends and best practices and provides guidance on building efficient and resilient networks.

What is network architecture?

Network architecture is the structured blueprint that defines how network services, devices, and clients are organized and interconnected. It covers both the physical layout of hardware and the logical design of communication, including the protocols, routing methods, and management practices that keep data moving efficiently, reliably, and securely.

A well-designed network architecture also embeds network security architecture, specifying where firewalls, encryption, and access controls fit into the overall design.

Objectives of network architecture

Network architecture is designed to achieve several core objectives that ensure a network can support an organization’s needs effectively:

1. Reliability and availability: Keeping services operational even during hardware failures, congestion, or unexpected events.
2. Scalability: Allowing the network to grow as more devices, users, or services are added, without requiring a major redesign.
3. Performance: Maintaining efficient data flow, minimizing latency, and optimizing bandwidth usage.
4. Security: Incorporating measures that protect against unauthorized access, data breaches, and other threats.
5. Manageability and visibility: Enabling administrators to monitor network health, detect issues, and make changes efficiently.
6. Cost-effectiveness: Balancing capabilities with budget and resource constraints.
7. Flexibility: Supporting evolving technologies and business requirements while minimizing disruptions.

These objectives often compete with one another, so architects must make thoughtful tradeoffs to balance reliability, performance, security, and cost.

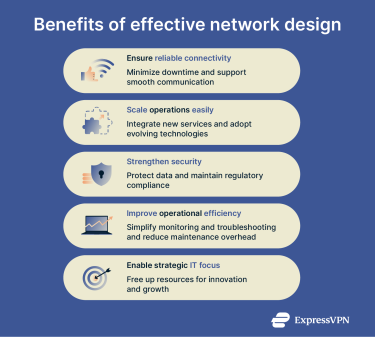

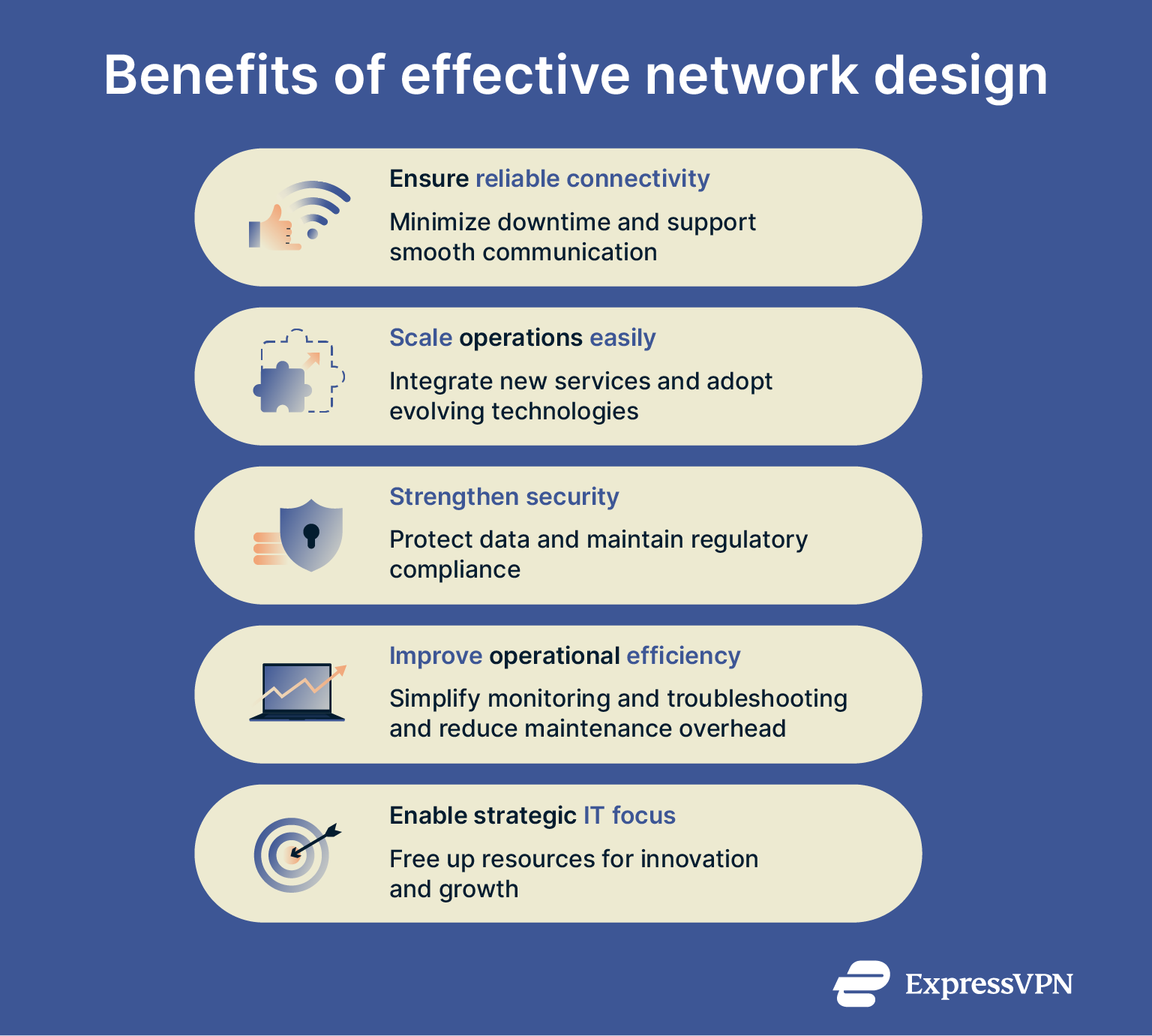

Impact on business operations

Network architecture directly influences how effectively a business can operate and grow. A well-designed network ensures consistent connectivity, reduces the risk of downtime, and supports smooth communication between teams, systems, and customers.

Scalable and reliable networks allow organizations to expand operations, integrate new services, and adopt evolving technologies without significant disruptions. Conversely, poorly designed networks can create bottlenecks, increase operational risk, and hinder responsiveness to changing business demands.

Security is another critical dimension. Networks that embed strong protective measures reduce the likelihood of data breaches, service interruptions, and regulatory noncompliance. Incorporating security at the architectural level helps businesses manage risk proactively rather than reactively.

Efficient network design also improves operational efficiency. It simplifies monitoring and troubleshooting, lowers maintenance overhead, and enables IT teams to allocate resources toward strategic initiatives rather than dealing with day-to-day network issues. In this way, effective network architecture serves as both a technical foundation and a business enabler, supporting agility, reliability, and long-term growth.

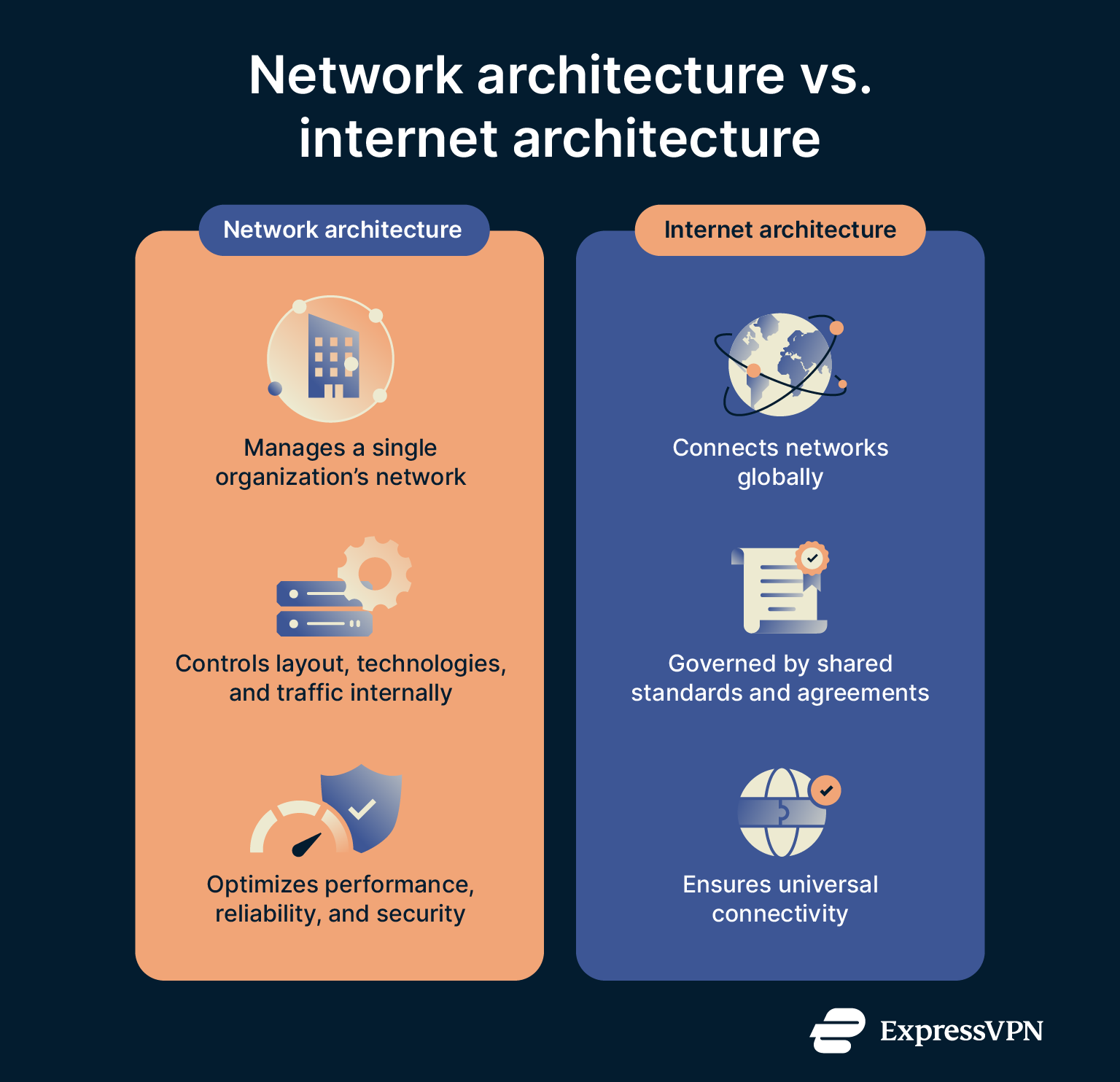

Network architecture vs. internet architecture

While network architecture describes how a specific network is organized and managed, internet architecture refers to the global framework that lets all networks communicate with each other. The first is about internal design; the second is about the shared system that connects everyone.

Key differences and overlaps

The main distinction lies in scope and control. Network architecture deals with the structure of a single network, usually one owned by an organization. IT teams can decide the layout, choose technologies, and set policies that determine how traffic flows internally. Internet architecture, on the other hand, refers to the global “network of networks.” It’s not governed by any one company but by a set of shared standards and agreements that make worldwide communication possible.

Another difference is in priorities. Local networks are typically built to optimize performance, reliability, and security for their own users. Internet architecture, on the other hand, focuses on ensuring universal connectivity: making sure any two systems, no matter how different, can exchange data across the globe.

Despite these differences, there is a clear overlap. Both architectures rely on the same core technologies, like IP addressing and routing protocols. And even private networks are typically designed with the expectation of eventual connectivity to the wider internet.

Why the distinction matters

Recognizing where the two architectures diverge has practical consequences.

Security is a clear example. Inside a private network, protections such as firewalls, access controls, and monitoring can be implemented and managed according to the organization’s policies. Connecting to the internet introduces elements that are outside the organization’s direct control. A strong network design should account for both internal safeguards and the broader environment in which data travels.

Reliability also illustrates the difference. Within their own systems, organizations can engineer high availability and predictable performance. However, those guarantees stop at the edge of the network. Once traffic enters the wider internet, performance depends on paths and providers outside the organization’s control.

Future-proofing is also important. Internal networks must adapt to evolving global standards to remain compatible with the wider internet. For example, the transition from IPv4 to IPv6 requires networks to support newer addressing formats, ensuring seamless communication with external systems and services. Planning for such changes helps networks stay interoperable, resilient, and ready for future technologies.

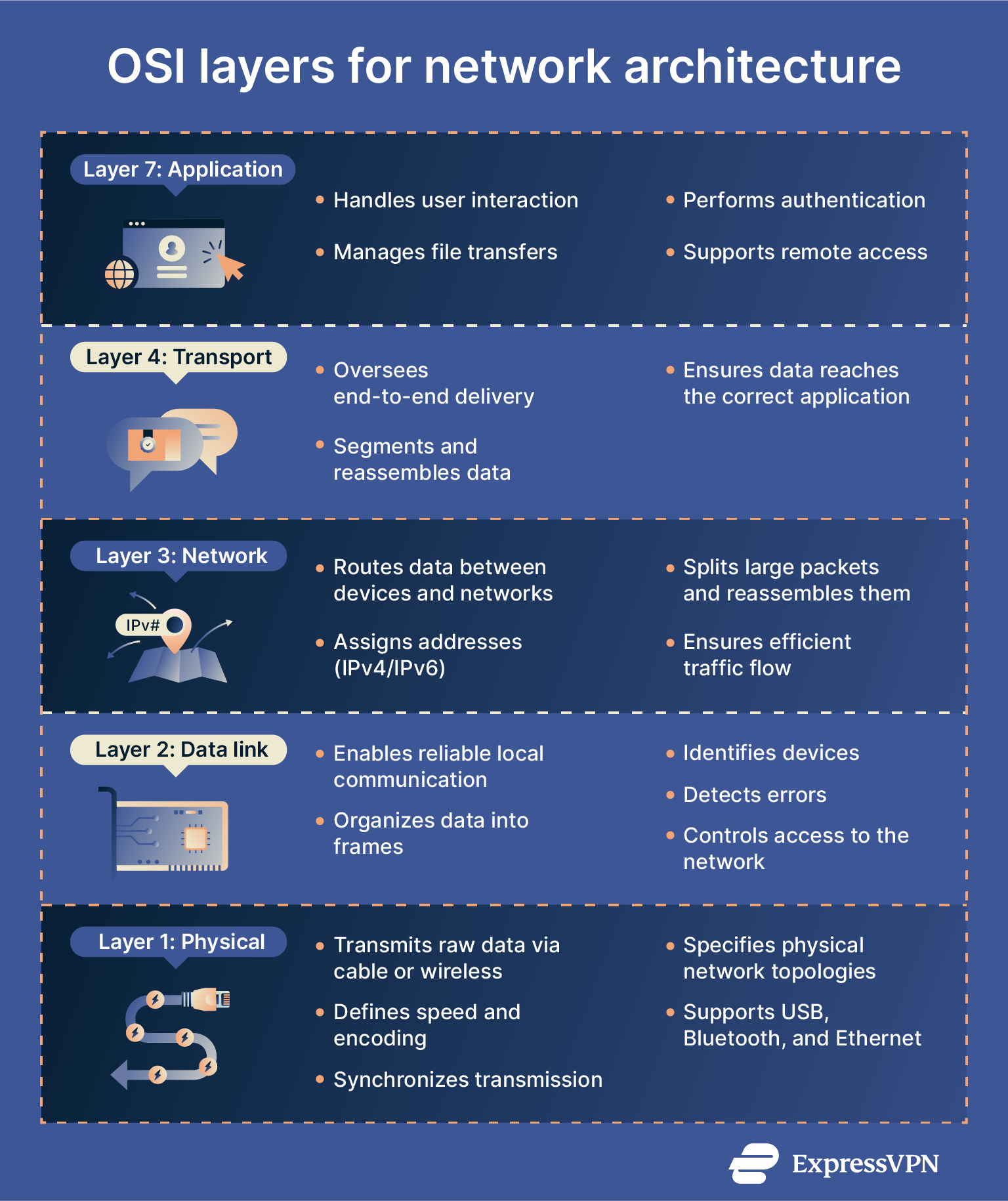

Understanding the layers of network architecture (OSI model)

Network architecture is often explained using the OSI (Open Systems Interconnection) model, which organizes network functions into seven layers. Each layer manages specific processes, allowing data to move smoothly from one device to another.

Although all seven layers play a role in network design, five are particularly important for understanding how networks operate: application, transport, network, data link, and physical.

Application layer (layer 7)

The application layer is where users interact with the network. It provides protocols and services that allow software applications, like web browsers and email clients, to communicate over the network. This layer manages tasks such as file transfers, communication authentication, remote access, and directory services, ensuring that data from applications can be transmitted to lower layers of the OSI model effectively.

The TCP/IP model, which is the foundational set of communication protocols for the internet, treats layer 7, layer 6 (presentation), and layer 5 (session) as a single layer under the application layer.

Transport layer (layer 4)

The transport layer oversees the end-to-end delivery of data. It divides messages into smaller segments or packets, ensures they arrive correctly, and retransmits any lost packets. This layer also manages data flow to ensure data reaches the correct application on the receiving device.

Network layer (layer 3)

The network layer handles routing and delivery across networks. It determines the best path for packets to travel and assigns addresses using protocols like IPv4 and IPv6. The layer can split large packets for transmission and reassemble them at the destination, while also helping manage traffic to keep data flowing efficiently.

Reliability isn’t guaranteed at this level, meaning the network layer doesn’t check whether packets arrive successfully or in the correct order; those responsibilities fall to the transport layer.

Data link layer (layer 2)

The data link layer makes sure devices on the same local network can communicate reliably. It organizes data into manageable units, adds hardware addresses so each device can be identified, and detects errors to prevent corrupted data from being used. This layer also controls how devices take turns using the network connection. Common technologies like Ethernet and Wi-Fi operate at this layer.

Since protocols like IPv4 operate on layer 3, there are no IP addresses to communicate with on layer 2. Instead, all communication is done via MAC addresses.

Physical layer (layer 1)

The physical layer deals with the actual transmission of raw data between devices. It covers the hardware and media used, such as cables, fiber optics, or wireless signals. This layer determines the speed of data transfer, how bits are encoded and synchronized, and how devices are physically connected in topologies like star, bus, or mesh. Standards like Bluetooth and Ethernet specify requirements at this layer to ensure devices can transmit and receive data correctly.

Common types of network architecture

Network architecture comes in many varieties, each optimized for different criteria (e.g., decentralization, scaling, or manageability). Below are some of the major models.

Peer-to-peer architecture

Peer-to-peer architecture places every device in the network on equal footing. Instead of relying on a central server, each device communicates directly with others and can act as both a requester and a provider of resources. This model is mainly used for smaller networks and is considered resilient because it doesn’t depend on a single machine to function.

Client-server architecture

Client-server architecture organizes devices into two roles. Client machines request data or services, while a dedicated server responds to those requests and manages resources. This centralized setup allows for easier management of access and security compared to peer-to-peer networks. However, because all requests rely on the central server, client-server networks can be disrupted if the server fails.

Hybrid architecture

Hybrid architecture combines elements of both peer-to-peer and client-server models. Some devices act as central servers, while others communicate directly with each other. This allows organizations to adapt the network structure to different tasks or workloads.

Cloud-based architecture

Cloud-based architecture moves network resources and services to remote servers that users access over the internet. This setup allows organizations to scale their networks more easily and manage resources without relying entirely on on-premises hardware.

Software-defined networking (SDN)

Software-defined networking separates the network control from the physical hardware, allowing administrators to manage and configure the network through software. This approach provides greater flexibility, simplifies network management, and makes it easier to adapt the network to changing requirements.

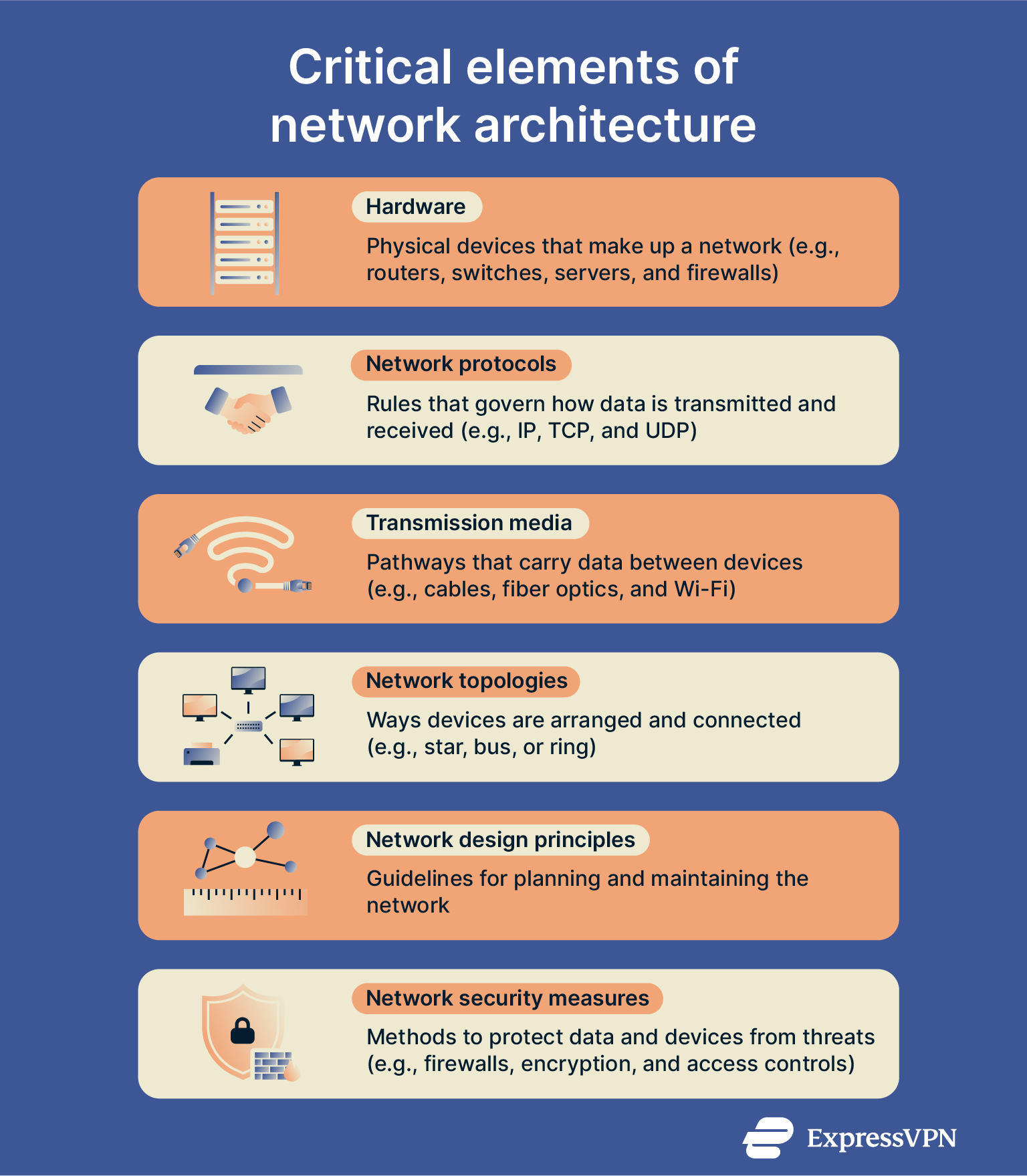

Key components of network architecture design

A network is made up of several critical elements that work together to ensure devices can communicate efficiently, reliably, and securely.

Hardware

Hardware refers to the physical devices that make up a network, including the equipment used to transmit, receive, and manage data.

Routers and switches

Routers and switches direct traffic within a network and between networks. Switches connect multiple devices within a local area network (LAN), allowing them to communicate efficiently. Routers connect different networks and determine the optimal paths for data to travel, enabling devices on separate networks to exchange information.

Servers and firewalls

Servers provide resources and services to other devices, such as file storage, applications, or email. Firewalls monitor and control incoming and outgoing network traffic, helping protect the network from unauthorized access and potential threats. Together, they form a critical part of the network’s operational and security infrastructure.

Network protocols

Network protocols are the rules and conventions that govern how devices communicate over a network. They define how data is formatted, transmitted, and received, ensuring that devices from different manufacturers or with different operating systems can exchange information reliably.

Key protocols include IP (Internet Protocol), which routes data packets across networks; TCP (Transmission Control Protocol), which ensures reliable, ordered delivery of data; and UDP (User Datagram Protocol), which enables faster, connectionless transmission for applications where speed is more important than guaranteed delivery.

Transmission media

Transmission media are the physical or wireless pathways that carry data between devices on a network. Common types include copper cables, such as twisted pair and coaxial, which are widely used in local area networks; fiber optic cables, which transmit data as light signals for higher speeds and longer distances; and wireless media, including Wi-Fi and cellular networks, which allow devices to communicate without physical connections.

Network topologies

Network topologies describe how devices are arranged and connected within a network. Common topologies include star, where all devices connect to a central hub; bus, where devices share a single data communication line; and ring, where each device connects to two others, forming a circular path for data. The choice of topology affects factors such as ease of expansion, fault tolerance, and overall network performance.

Network design principles

Network design principles guide how a network is planned, structured, and maintained to meet an organization’s needs. These principles include:

• Scalability: Ensuring the network can grow with demand.
• Reliability: Keeping data flowing even when some components fail.
• Performance: Optimizing speed and efficiency.
• Manageability: Making it easier for administrators to monitor, maintain, and troubleshoot the network.

Using network mapping tools and best practices can make these principles easier to put into action. They help visualize how devices are connected, monitor performance across the network, and identify potential vulnerabilities before they cause problems.

Network security measures

Network security measures protect the integrity, confidentiality, and availability of data and devices within a network. Common measures include firewalls that monitor and control traffic, encryption that secures data in transit, access controls that restrict who can use or manage network resources, and intrusion detection systems that identify potential threats.

Implementing these measures helps prevent unauthorized access, data breaches, and other security incidents, and also ensures your network aligns with security standards and compliance requirements.

The role of VPNs in modern network design

Virtual private networks (VPNs) provide encrypted connections that protect data and ensure secure communication across networks. They mask IP addresses and encrypt traffic, safeguarding sensitive data from interception and snooping. When combined with authentication and access controls, these measures help organizations maintain data privacy, comply with regulations, and reduce the risk of security incidents.

Additionally, VPNs enable secure remote work and safe connections between branch offices or cloud resources by creating encrypted tunnels over public or untrusted networks. This allows employees and systems to communicate as if they were on the same private network, making VPNs a critical component of modern network planning.

Best practices for VPN integration

Integrating a VPN into an organization’s network requires thoughtful planning to maximize security and efficiency. Key best practices include:

• Establish VPN usage policies: Define who can access the VPN, under what circumstances, and how remote employees should connect. Clear policies help prevent misuse and ensure consistent security practices.
• Provide employee training: Ensure users know how to connect, select servers, and follow VPN policies correctly to maintain security.
• Select strong encryption protocols: Not all VPN protocols offer the same level of protection. Select well-tested, reliable options, such as OpenVPN, WireGuard, or IKEv2/IPsec, to ensure safe integration into your network.
• Enable multi-factor authentication (MFA): MFA adds an extra layer of verification by requiring more than one form of authentication. This ensures that even if login credentials are compromised, unauthorized users can’t access the VPN.
• Regularly update VPN software: Outdated software can be exploited by attackers, so timely updates to VPN clients, servers, and related software are essential to maintain a strong security posture.
• Integrate with other security tools: Combine VPNs with firewalls, intrusion detection systems, and endpoint protection to create a layered security approach.
• Monitor and log VPN activity: Track connections, session durations, and data transfers to detect unusual behavior or potential breaches.
• Conduct periodic security audits: Regularly test the VPN configuration, encryption methods, and access policies to identify weaknesses or misconfigurations.

VPNs in cloud and software-defined environments

In modern network architectures, particularly those using cloud or software-defined technologies, Software-Defined Perimeters (SDPs) complement traditional VPNs by refining access control. While VPNs create secure, encrypted tunnels for users to reach a network, SDPs determine which authenticated users can reach particular resources while keeping other parts of the network hidden.

This layered approach aligns with Zero Trust principles, which assume no user or device is inherently trustworthy. It helps organizations secure remote connections, manage access to cloud and hybrid resources, and reduce potential exposure across their networks.

Benefits and challenges of network architecture

A well-designed network architecture can improve efficiency and scalability, but it also comes with costs, management challenges, and security risks. Here’s an overview of the key benefits and common challenges organizations face.

Advantages of robust architecture

A well-structured network architecture brings clear benefits in terms of:

• Efficiency: A well-designed network reduces bottlenecks and streamlines communication.

• Reliability: Centralized management and redundancy keep systems running even if some components fail.

• Scalability: Good network architecture can grow to handle more users and devices without major redesigns.

• Automation: Many modern network architectures include automated management features, which handle tasks like configuration backups and routine security updates, reducing manual work and helping to keep the network running smoothly.

Alongside these general benefits, each type of network architecture has unique strengths. Peer-to-peer networks, for example, are inexpensive and stable for small setups, while client–server models provide easier centralized management and stronger security controls.

Common challenges faced

Even the most carefully designed network architectures come with challenges. Here are the main issues:

• Cost: Setting up a good network infrastructure, including servers, switches, and security devices, can be expensive.
• Management complexity: Larger or hybrid networks require ongoing monitoring, configuration, and troubleshooting to keep systems operating efficiently.
• Security risks: Malware can spread quickly if not contained, and each network type has its own vulnerabilities; for instance, peer-to-peer networks may be harder to secure due to the lack of a central control point, while client–server models rely heavily on the security of the central server.

Understanding these risks and planning mitigation strategies is crucial to maintaining a reliable and safe network.

Future-proofing network designs

Planning for the long-term evolution of a network is essential. Simplicity is increasingly a priority: architectures that are easier to implement, maintain, and scale help organizations adapt to changing needs. Emerging technologies also shape design considerations: the rollout of 5G and future 6G networks, for example, will require flexible architectures that can handle new deployment models and higher traffic volumes.

Hybrid work environments, where employees split time between home and office, demand networks that can securely support multiple locations. Similarly, adoption of AI or blockchain systems requires an architecture capable of integrating these technologies seamlessly.

By monitoring performance, anticipating future demands, and building in flexibility, organizations can ensure their networks remain effective and secure over time.
